Schema documentation for xlink.xsd

Showing:

Attributes

Diagrams

Facets

Properties

Source

Used by

Imported schema xlink.xsd

Namespace

http://www.w3.org/1999/xlink

Properties

attribute form default	unqualified
element form default	qualified

Attribute xlink:simpleLink / @xlink:type

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

fixed

simple

Used by

Attribute Group

xlink:simpleLink

Source

<attribute name="type" type="string" fixed="simple" form="qualified"/>

Attribute @xlink:href

Namespace

http://www.w3.org/1999/xlink

Type

anyURI

Properties

content

simple

Used by

Attribute Groups

xlink:locatorLink, xlink:simpleLink

Source

<attribute name="href" type="anyURI"/>

Attribute @xlink:role

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

content

simple

Used by

Attribute Groups

xlink:extendedLink, xlink:locatorLink, xlink:resourceLink, xlink:simpleLink

Source

<attribute name="role" type="string"/>

Attribute @xlink:arcrole

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

content

simple

Used by

Attribute Groups

xlink:arcLink, xlink:simpleLink

Source

<attribute name="arcrole" type="string"/>

Attribute @xlink:title

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

content

simple

Used by

Attribute Groups

xlink:arcLink, xlink:extendedLink, xlink:locatorLink, xlink:resourceLink, xlink:simpleLink

Source

<attribute name="title" type="string"/>

Attribute @xlink:show

Namespace

http://www.w3.org/1999/xlink

Type

restriction of string

Properties

content

simple

Facets

enumeration	new
enumeration	replace
enumeration	embed
enumeration	other
enumeration	none

Used by

Attribute Groups

xlink:arcLink, xlink:simpleLink

Source

<attribute name="show">
  <simpleType>
    <restriction base="string">
      <enumeration value="new"/>
      <enumeration value="replace"/>
      <enumeration value="embed"/>
      <enumeration value="other"/>
      <enumeration value="none"/>
    </restriction>
  </simpleType>
</attribute>

Attribute @xlink:actuate

Namespace

http://www.w3.org/1999/xlink

Type

restriction of string

Properties

content

simple

Facets

enumeration	onLoad
enumeration	onRequest
enumeration	other
enumeration	none

Used by

Attribute Groups

xlink:arcLink, xlink:simpleLink

Source

<attribute name="actuate">
  <simpleType>
    <restriction base="string">
      <enumeration value="onLoad"/>
      <enumeration value="onRequest"/>
      <enumeration value="other"/>
      <enumeration value="none"/>
    </restriction>
  </simpleType>
</attribute>

Attribute @xlink:label

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

content

simple

Used by

Attribute Groups

xlink:locatorLink, xlink:resourceLink

Source

<attribute name="label" type="string"/>

Attribute @xlink:from

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

content

simple

Used by

Attribute Group

xlink:arcLink

Source

<attribute name="from" type="string"/>

Attribute @xlink:to

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

content

simple

Used by

Attribute Group

xlink:arcLink

Source

<attribute name="to" type="string"/>

Attribute xlink:extendedLink / @xlink:type

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

fixed

extended

Used by

Attribute Group

xlink:extendedLink

Source

<attribute name="type" type="string" fixed="extended" form="qualified"/>

Attribute xlink:locatorLink / @xlink:type

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

fixed

locator

Used by

Attribute Group

xlink:locatorLink

Source

<attribute name="type" type="string" fixed="locator" form="qualified"/>

Attribute xlink:arcLink / @xlink:type

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

fixed

arc

Used by

Attribute Group

xlink:arcLink

Source

<attribute name="type" type="string" fixed="arc" form="qualified"/>

Attribute xlink:resourceLink / @xlink:type

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

fixed

resource

Used by

Attribute Group

xlink:resourceLink

Source

<attribute name="type" type="string" fixed="resource" form="qualified"/>

Attribute xlink:titleLink / @xlink:type

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

fixed

title

Used by

Attribute Group

xlink:titleLink

Source

<attribute name="type" type="string" fixed="title" form="qualified"/>

Attribute xlink:emptyLink / @xlink:type

Namespace

http://www.w3.org/1999/xlink

Type

string

Properties

fixed

none

Used by

Attribute Group

xlink:emptyLink

Source

<attribute name="type" type="string" fixed="none" form="qualified"/>

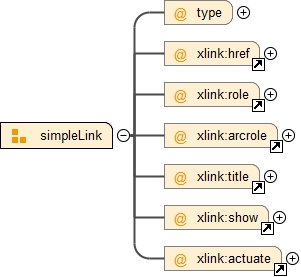

Attribute Group xlink:simpleLink

Namespace

http://www.w3.org/1999/xlink

Diagram

Used by

Complex Type

mdRefDefinition

Attributes

QName	Type	Fixed	Use
xlink:actuate	restriction of string		optional
xlink:arcrole	string		optional
xlink:href	anyURI		optional
xlink:role	string		optional
xlink:show	restriction of string		optional
xlink:title	string		optional
xlink:type	string	simple	optional

Source

<attributeGroup name="simpleLink">
  <attribute name="type" type="string" fixed="simple" form="qualified"/>
  <attribute ref="xlink:href" use="optional"/>
  <attribute ref="xlink:role" use="optional"/>
  <attribute ref="xlink:arcrole" use="optional"/>
  <attribute ref="xlink:title" use="optional"/>
  <attribute ref="xlink:show" use="optional"/>
  <attribute ref="xlink:actuate" use="optional"/>
</attributeGroup>

Attribute Group xlink:extendedLink

Namespace

http://www.w3.org/1999/xlink

Diagram

Attributes

QName	Type	Fixed	Use
xlink:role	string		optional
xlink:title	string		optional
xlink:type	string	extended	optional

Source

<attributeGroup name="extendedLink">
  <attribute name="type" type="string" fixed="extended" form="qualified"/>
  <attribute ref="xlink:role" use="optional"/>
  <attribute ref="xlink:title" use="optional"/>
</attributeGroup>

Attribute Group xlink:locatorLink

Namespace

http://www.w3.org/1999/xlink

Diagram

Attributes

QName	Type	Fixed	Use
xlink:href	anyURI		required
xlink:label	string		optional
xlink:role	string		optional
xlink:title	string		optional
xlink:type	string	locator	optional

Source

<attributeGroup name="locatorLink">
  <attribute name="type" type="string" fixed="locator" form="qualified"/>
  <attribute ref="xlink:href" use="required"/>
  <attribute ref="xlink:role" use="optional"/>
  <attribute ref="xlink:title" use="optional"/>
  <attribute ref="xlink:label" use="optional"/>
</attributeGroup>

Attribute Group xlink:arcLink

Namespace

http://www.w3.org/1999/xlink

Diagram

Attributes

QName	Type	Fixed	Use
xlink:actuate	restriction of string		optional
xlink:arcrole	string		optional
xlink:from	string		optional
xlink:show	restriction of string		optional
xlink:title	string		optional
xlink:to	string		optional
xlink:type	string	arc	optional

Source

<attributeGroup name="arcLink">
  <attribute name="type" type="string" fixed="arc" form="qualified"/>
  <attribute ref="xlink:arcrole" use="optional"/>
  <attribute ref="xlink:title" use="optional"/>
  <attribute ref="xlink:show" use="optional"/>
  <attribute ref="xlink:actuate" use="optional"/>
  <attribute ref="xlink:from" use="optional"/>
  <attribute ref="xlink:to" use="optional"/>
</attributeGroup>

Attribute Group xlink:resourceLink

Namespace

http://www.w3.org/1999/xlink

Diagram

Attributes

QName	Type	Fixed	Use
xlink:label	string		optional
xlink:role	string		optional
xlink:title	string		optional
xlink:type	string	resource	optional

Source

<attributeGroup name="resourceLink">
  <attribute name="type" type="string" fixed="resource" form="qualified"/>
  <attribute ref="xlink:role" use="optional"/>
  <attribute ref="xlink:title" use="optional"/>
  <attribute ref="xlink:label" use="optional"/>
</attributeGroup>

Attribute Group xlink:titleLink

Namespace

http://www.w3.org/1999/xlink

Diagram

Attributes

QName	Type	Fixed	Use
xlink:type	string	title	optional

Source

<attributeGroup name="titleLink">
  <attribute name="type" type="string" fixed="title" form="qualified"/>
</attributeGroup>

Attribute Group xlink:emptyLink

Namespace

http://www.w3.org/1999/xlink

Diagram

Attributes

QName	Type	Fixed	Use
xlink:type	string	none	optional

Source

<attributeGroup name="emptyLink">
  <attribute name="type" type="string" fixed="none" form="qualified"/>
</attributeGroup>
